n Connect Skype through your office extension phones, no need of microphones, speakers and everyone's PC
n Support maximum 4 independent Skype calls concurrently
n Support 4 FXS ports for Skype application ad 4FXO for landline when the corresponding FXS port is not busy
n Support devices cascading up to 16 FXS/FXO ports in one PC
n Support international busy tone
n Only need an unique corporate Skype account for contacts
n Make both Skype and PSTN calls with existing office extension phones
n Support Speed Dial(up to 20 digits) or SkypeOut™ calls directly through the office extension phone keypad dialing
n Receive a PSTN or Skype call in the way as you do with your office extension phones
n Cheese Button: If Skype quality is not good or contact doesn't answer your call …Just press "#" key
through phone keypad to switch to a presetting SkypeOut or PSTN call (Patent Pending)
n "Just remember extension number for contact": Need to find your colleague? All you need to remember now is his/her extension
number. Ex. Dial "*" + extension "168" no matter he/she is in office or not. If the connection is bad or no answer, then press a
single "#" key(Cheese Button) to dial his/her preset alternative connections (Home, remote office, SkypeOut,…,etc.)
without dialing or memorizing lengthy phone numbers
n Web management
n Easy of use and user friendly interface
n Support CDR (Call Detail Record) for view and back up.
n Support public and private contacts phonebook
n Allow every user to export personal Skype contacts into SkyGW4 private phonebook via web interface (IE, Internet Explorer) .
n Automatically check SkypeOut credit and send notification via SMS for MIS
n Advanced operation administration messages like HW/SW error, Skype/SkypeOut status & call connection status

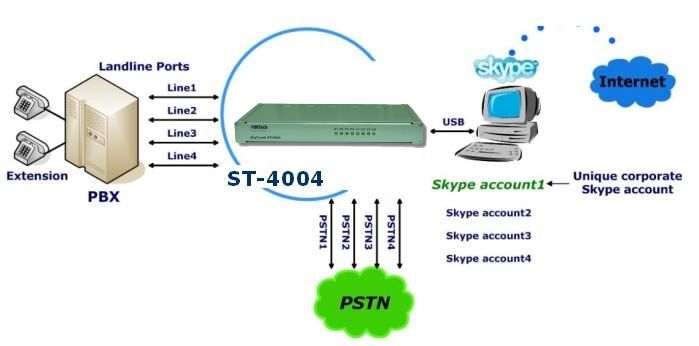

n Support popular PBXs  Application
 Minimum System Requirements n One Computer running at 2.8 GHz or quicker, 1024 MB RAM with a CD-ROM drive
n PC running Windows XP
n 100 MB free disk space on your PC
n One free USB 1.1 / 2.0 port
n More than 128 Kbps dedicated internet connection (ADSL, Cable Modem, ...., etc) is recommended
n PBX with 4 FXO ports
Product Specification
n One USB port (Type B Receptacle Connector) for PC connection
n Dip switch for devices cascading up to 16 FXS & FXO ports
n One reset button to reset SkyGW4 hardware and firmware
n 4 FXS ports for connecting to PBX's CO ports
n 4 FXO ports for CO
n Skype V. 2.5, 3.0( 3.0.0.216 above) and 3.1 compatible
n LED: On/Off, blinking per FXO & FXS port connection & status
n Power: DC 5V power adapter with maximum 3Amp current rating
|
