Product Details


  • Model:SP-8H

Product Introduction

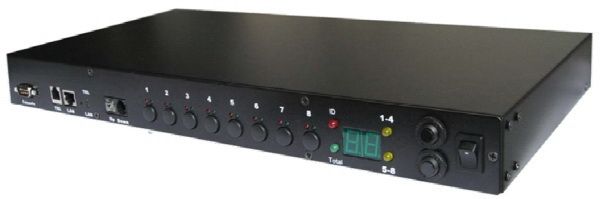

The Smart Power Monitor SP-8H (8 ports) is a Remote Control Surveillance Management System that can power on / off / Reboot via PSTN and Web.

Work with PORTech MT-350 GSM Gateway,you can power switch via mobile phone

SP-8H has MASTER model and SLAVE model
One MASTER model can string up 15pcs SLAVE model
SLAVE model price is cheaper than MASTER Model.
Function is the same.


Features / Benefits

  • Control Power Switch of Remote Equipment via network or phone voice to replace the presence of the personnel.
  • LED face board to inspect current equipment ID ,Main Current and each Router Current directly.
  • It can be linked with 16 sets monitors at maximum to control up to 128 sets of connected devices.
  • Detect whether two sets of power circuit are normal automatically.
  • It is equipped with overloading electric breaking protector to avoid overloading to cause device damage.
  • It can be attached temperature detector to control the power switch according to environment change.
  • Execute Power On / Off / Reboot via Console to manage its performance.
  • Support nearby Manual Power Switch.
  • Support Power Start sequence setting to prevent all of switches from starting simultaneously to cause sudden overloading and effect equipment working.
  • Provide 20 sets of accounts and passwords for your own setting to manage different power switches.
  • Pre-set Switch Start Time and arrange the working schedule for power supply.
  • Support Windows,Linux to execute the safety shot-down and avoid system damage.
  • Support Wake on Ring function. ATX equipment can be started normally.
  • Detect whether the power current of all routes are normal or not to avoid current overloading to damage the device.
  • By brief message and email warning to practice the instant surveillance and warning to important equipment.
  • Record the user's operating message and abnormal message to provide the user to check the case afterwards.
  • Provide API interface. The manager can develop the control software by himself.
  • Each rout can detect UPS low power signal to provide safety shut-down management for the equipment.
  • Provide remote net firmware to renew the function.
  • Provide the function of IP and MAC address flitter that prevent unauthorized user from access the device.

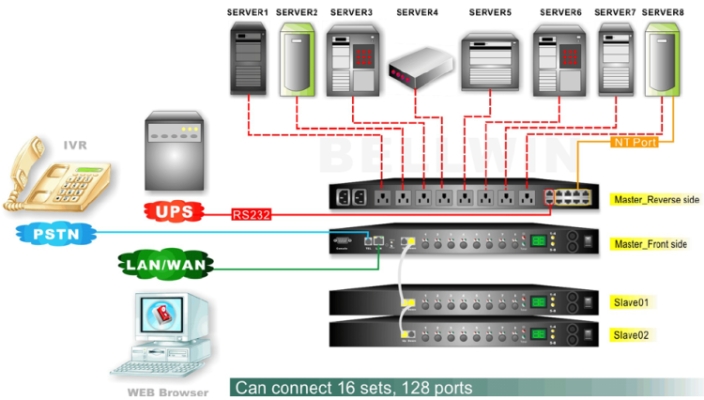

Device Connect Diagram
