Product Details


  • Model:DMT

Product Introduction

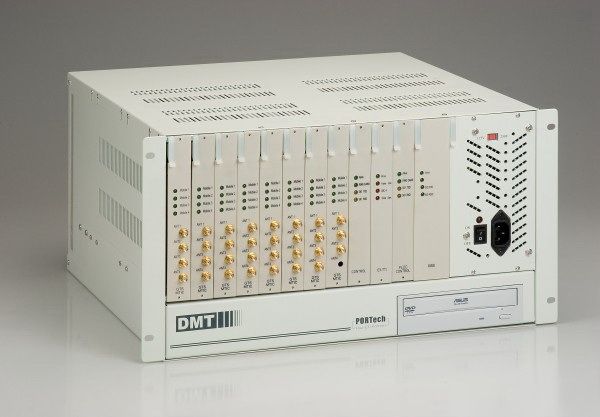

DMT is a E1 GSM Channel Bank / E1 GSM Gateway
~E1 PRI*1 (or T1 PRI*1) , 3G UMTS *31 (two ways)


DMT is a E1 GSM Channel Bank that accepts incoming call from E1/T1 PRI of PSTN or PBX and choose one GSM channel to dial out according to the prefix of the destination mobile number. In this way, we can have least cost routing. DMT can provide Call Detail Record (CDR) for traffic and accounting management.
*Besides PRI to GSM,you maybe also apply GSM to PRI (two ways).
* 1 year warranty

3G Frequecny:
U Version:2G 850,900,1800,1900MHz,3G 850,2100 MHz
A Version:2G 850,900,1800,1900MHz,3G 850,1900 MHz
G Version:2G 850,900,1800,1900MHz,3G 800/850/900/1900/2100HMZ

 Catalog Download(657KB        User Manual(4.8MB)       Download High Quality Picture



each E1 channel will connect to the corresponding output GSM Port.

 Auto-routing for the same network: system will search for the GSM port of the same network to dial out, according to the prefix of the out-dialing number from the incoming E1 channel.
Password validation: operator has to input the correct password for further setup of the system parameters.
Hiding the CLID: user can choose whether to hide the CLID of the GSM port or not.
Calling time: user can assign the calling time for each sheet of the SIM card. When the time runs out, system will block this GSM port, or switch to next unused SIM card (in the case that SCE or SCBox is installed).
Call detail record (CDR): the CDR is provided for further use of the billing system.
Backup of CDR: user can set up the path of CDR backup.
Simulate ring back tone: user can set up whether to simulate ring back tone or not.
SCE test: system can auto-test the SIM card switching function to ensure the successful switchover without letting the SIM card be used repeatedly.
ASR statistics: system will provide a time-varying ASR analyzing report for easy understanding the communication traffic.
VoIP Application: VoIP Gateway's E1/T1 port connects DMT's E1/T1 port.


Hardware spec:

    GSM spec in the MTIC:
(1) Providing 4 ports GSM.
(2) LED GSM status display.
      E1/T1 Trunk(ISDN E1/T1 PRI)

( 1) Providing Digital Tone Source required in the RACK.
(2) ±15dB Gain Adjustment.

      IMS:512*512 Digital Switch
      (1) Input Voltage:AC90-135V,AC180-264V,50Hz~60Hz.
(2) Input Current:8A for 115VAC,5A for 230VAC
(3) Type:Switching.
(4) Output:+3.3V_28A,+5V_30A,+12V_15A,-5V_0.5A,-12V_1A,+5VSB_2A.
(5) Total Power:300W
Antenna collecting Box: Base equipment.

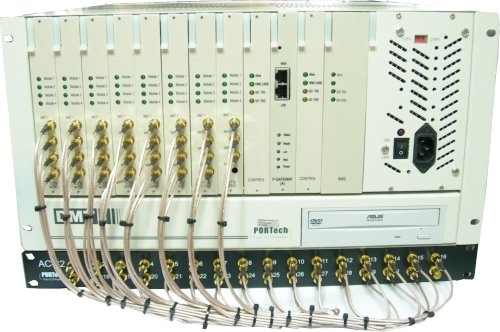

If you want to connect extra Outdoor directional antenna or Yigi antenna.....,
you can purchase option Antenna Combiner(AC-32)
If your control room is usually no body there,you can consider our smart power monitor.
It can remote power on/off ,reboot via PSTN or WEB.
